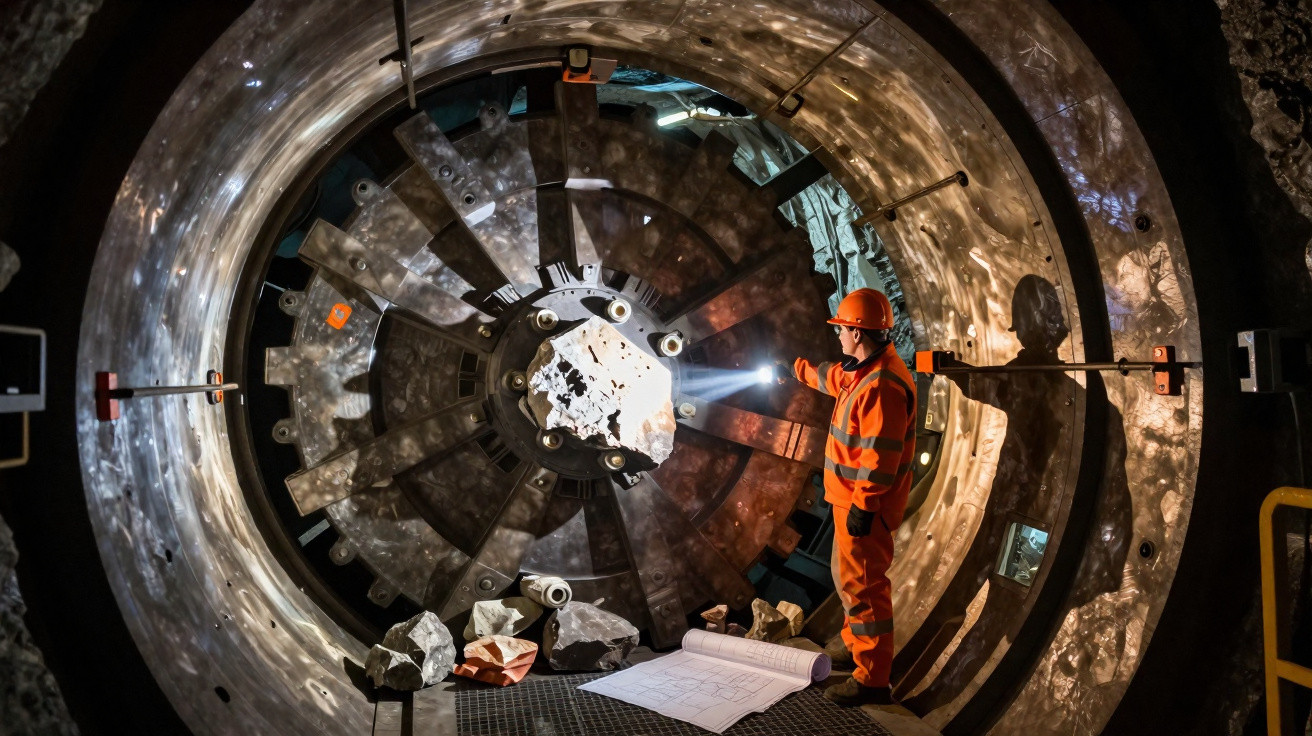

A 49-foot (about 15-metre) tunnel boring machine - a vast underground drilling system that cuts through rock to form tunnels - has been shown to be able to trap its own spoil when rapid rotation forces the muddy mixture into a circulating ring along the chamber wall.
This shifts the explanation for why these machines stall: the main limiting factor is internal flow and the way debris is transported, rather than a lack of cutting power.
Inside the chamber
Within the pressurised chamber of a slurry shield, the blockage developed as newly broken material dropped rapidly and then fanned out across the base.
By monitoring that accumulation, doctoral researcher Hongwan Xiao at Central South University (CSU) found the bulk of the material creeping towards the outlet rather than being lifted clear.
Only a small proportion rose through the cutterhead openings, leaving most fragments to build into a dense, persistent layer underneath.
This behaviour puts the focus on whether rotation speed and pump-driven circulation help the debris leave the chamber - or cause it to pile up.
When speed backfires
Increasing the cutterhead speed - the rotating face that bites into the rock - made the flow appear smoother, yet it actually reduced how effectively spoil was removed.
Once rotation exceeded 1.2 revolutions per minute, circumferential flow - liquid moving in a loop around the chamber wall - began to dominate.
That sideways circulation kept fragments travelling around the chamber rather than heading to the opening intended to carry them away.
As a result, operators could not clear the jam simply by spinning faster, even though that is a common response when advance rates begin to fall.
Pumps pulling apart
Pump configuration mattered because the chamber did not act like a single, uniformly mixed volume of slurry.
Raising throughput via Pump 0.1 improved the sweep of broken rock towards the discharge side, where suction could then capture it.
By contrast, adding flow through Pump 0.2 produced the reverse effect, steering material into patterns that encouraged continued circulation and settling.
In other words, minor adjustments to where liquid enters the machine could decide whether spoil exits the system or merely keeps moving in loops.
One jet matters
One of the simplest remedies proved to be a separate recirculation jet - slurry sent back through the chamber. Angling that jet 30 degrees downward directed energy into the low debris bed instead of passing above it.
With a flow of about 5,300 gallons per minute (around 20,000 litres per minute), that adjustment increased debris discharge by 5.8 percent without requiring a full redesign.
The finding is important because crews can often retune jets and pumps long before a machine can be physically rebuilt.
Costs below ground
When rock-rich slurry is trapped, fragments repeatedly scour pipes, cutters and chamber walls, accelerating wear as material scrapes the same surfaces again and again.
A field case in China reported that elbows and bends deteriorated more quickly than straight sections during rock-heavy slurry tunnelling.
Frequent stoppages for clean-outs also consume working time, as teams must remove compacted material before the machine can advance safely.
So the blockage is expensive not only because progress slows, but because each delay can increase wear that will need repairing later.
Why size matters
Larger machines face a straightforward maths issue: a wider excavation produces more broken rock each time the face rotates.
At the Haizhu Bay Tunnel in Guangzhou, southern China, the shield section extended about 1.3 miles (roughly 2.1 km) using machines around 49 feet (about 15 metres) in diameter.
It was Guangzhou’s first ultra-large shield section, and the scale was enough to amplify every internal “traffic” issue.
As shield diameters increase for river and sea crossings, moving material through the machine becomes as critical as the cutting power at the face.
Whole system view
Earlier approaches often examined the cutterhead region or the rear chamber in isolation, leaving the connection between the two only partly understood.
A paper from the same CSU research group reported heavy soil collecting near the cutterhead’s centre and around its edge.
That close-up view helped clarify where clogging begins, but it did not capture how later pump decisions redirect material.
The newer study mattered because it tracked the same debris along the full route to the discharge pipeline.
Earlier fixes helped
In another study focused on suction ports, discharge behind the cutting face improved when the suction opening was moved forwards.
Under clay conditions, that modification raised discharge by 75.19 percent and reduced chamber build-up by 84.70 percent.
Even so, a fix aimed at one location could not explain why material still stalled elsewhere once the entire pipeline network was involved.
The latest work extends that CSU lesson by treating the tunnel boring machine as a single connected transport system, rather than a set of separate problem zones.
From model onward
Because the CSU team used a full-scale virtual replica, the operational guidance was close enough to real conditions to be tested on site.
Site crews applied the optimised scheme successfully, reducing the retention issue without waiting for a new machine design.
Outcomes still vary with geology, as muddy sandstone and other ground conditions generate different particle sizes, levels of stickiness and wear behaviour.
Even with that caveat, the study offers a lower-cost first step for builders: adjust flow, jet angle and rotation speed before commissioning new hardware.
What it means
The results highlight an awkward reality: giant boring machines are stopped less by hard rock itself than by poor “traffic management” inside a moving, muddy slurry.
For teams planning ever-larger tunnels, the next improvements may come from more intelligent internal flow control rather than simply fitting larger motors.
